Applications



  • For applications with high dynamic pressure pulsations or vibration a liquid filled case and socket restrictor are available
  • Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system
  • Process industry: chemical/petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction



Available in: New England and New York

Key Features

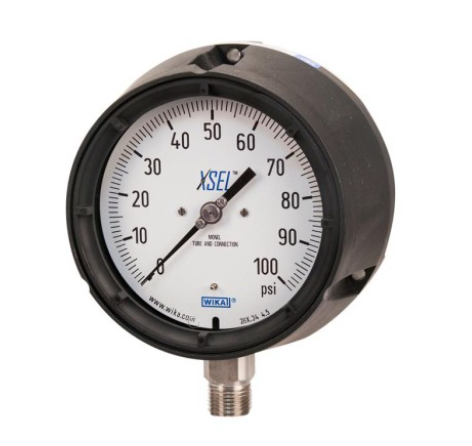

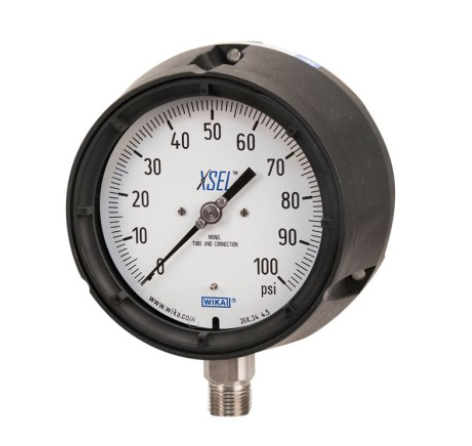

  • Model series: Models 262.34, 263.34 XSEL® Process Gauge
  • Size range: 4½” & 6” (115 & 160 mm) dial size
  • Pressure class rating: Positive pressure ranges to 15,000 psi (1,000 bar)
  • Temperature range: Ambient: -40°F to +150°F(-40°C to +65°C) dry -4°F to +150°F(-20°C to +65°C)
  • Temperature range: glycerine filled -40°F to +150°F(-40°C to +65°C)
  • Temperature range : silicone filled Medium: max. +212°F (+100°C)
