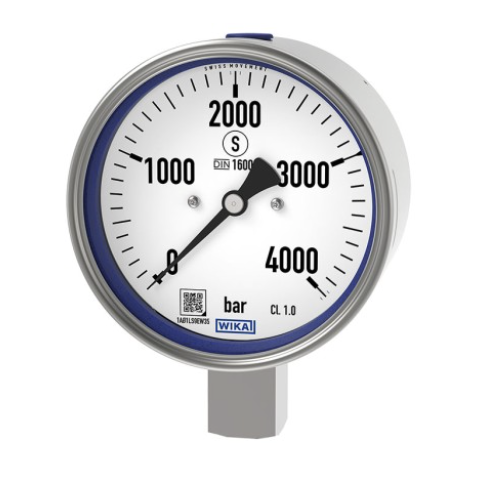

The model PG23HP-P Bourdon tube pressure gauge has been designed specifically for high-pressure applications up to 6,000 bar. This makes it one of the few pressure gauges available worldwide which can reliably display pressures of this order of magnitude.

Applications

  • For liquid media in high-pressure applications (e.g. water, hydraulic oil
  • Test benches (e.g. for autofrettage, burst pressure)
  • Water jet cutting
  • High-pressure cleaning
  • High-pressure generation





Available in: New England and New York

Key Features

  • Model series: Model PG23HP-P Pressure Gauge
  • Size range: Nominal size in mm 100, 160
  • Pressure class rating: From 0 -2,000 bar to 0 -6,000 bar or from 0- 30,000 psi to 0 -85,000 psi
  • Material: Stainless steel, with solid baffle wall (Solidfront) and blow-out back
  • Temperature range: When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale value
