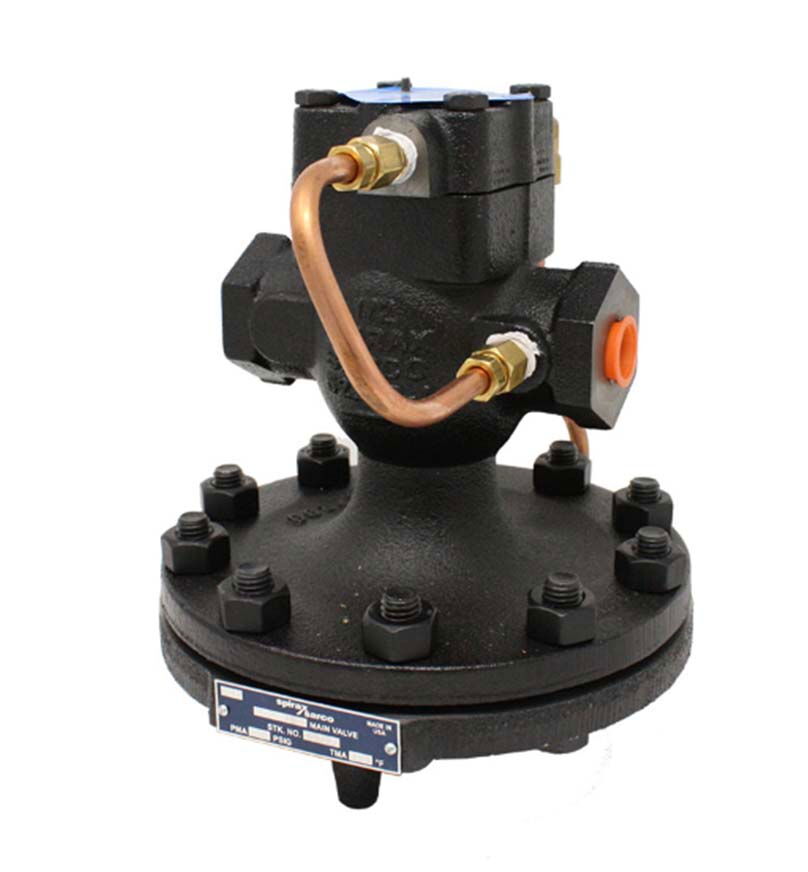

Spirax Sarco Pressure Reducing Main Valve, Pilot Operated, 1-1/2 in Nominal, NPT, 250 psi, 450 deg F, Cast Iron Body, Media: Steam, 18.4 in H
The 25P is a self-actuated pilot-operated pressure regulator. Downstream pressure is fed back through an external sensing line to the pressure pilot, which adjusts the opening of the main valve so as to maintain the set pressure. The main valve can close tight for ANSI/FCI 70-2 Class IV shut off when steam is not required.
Key Features
- Material: Stainless Steel
- Brand: Spirax Sarco
- Weight: 44 lbs
- Nominal Size: 1-1/2 in
- End Style: FNPT
- Pressure Rating: 250 psi
- Temperature Rating: 450 deg F
- Body Material: Cast Iron
- Dimensions: 18.4 in H
- Media: Steam Series: 25P
- Type: Pilot Operated
