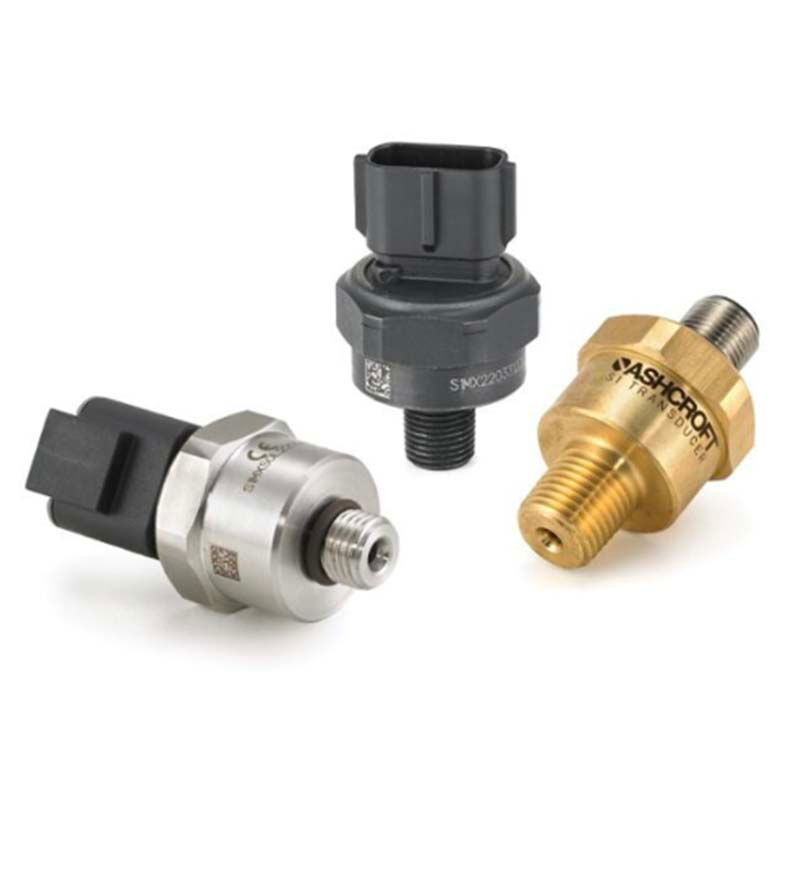

The Ashcroft® S1 OEM pressure transducer incorporates Ashcroft’s proven CVD sensing technology to provide a cost effective transducer that provides superior performance. The S1 is a hydraulic pressure sensor designed to provide uncompromised performance especially for applications that see high shock, vibration and excessive pressure cycling. The S1 utilizes a high-performance ASIC and digital compensation to provide excellent temperature performance, while the thin film sensor enables long-term stability. An ideal choice for pressure measurement for mid to high volume applications.
Key Features
- Reference Temperature: 72 °F ±2 °F (21 °C ±1 °C)
- Accuracy: ±1.0% of Span (±0.50% Optional): Includes non-linearity, hysteresis. non-repeatability, zero offset and span setting errors at reference temperature
- Pressure Ranges: Compound and gauge pressure, VAC to 10,000 psi
- Outputs: 4-20 mA, 0-5 Vdc, 0-10 Vdc, 1-5 Vdc, 1-6 Vdc, 0.5-4.5 Vdc and 0.5-4.5 Vdc ratiometric (requires 5.0 Vdc supply)
- Stability: ≤±0.25% span/year at reference conditions
