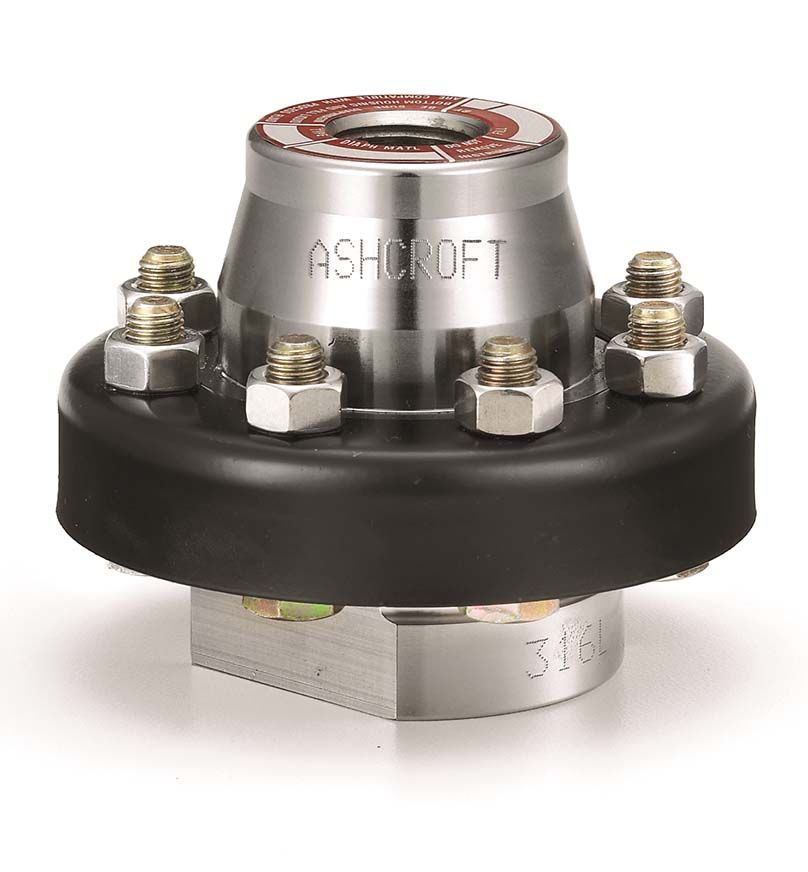

The Ashcroft® 200 and 201 threaded diaphragm seals protect pressure measuring instruments. Used when process compatibility is required, these are also applied when media exhibit high temperature or the potential to clog an instrument connection. Ideal for satisfying many challenging applications.
Key Features
- Process Connection Size: 1/4 to 1 NPT Male 1/4 to 1-1/2 NPT Female
- Instrument Connection: ¼ NPT Female, ½ NPT Female
- Added Tolerance: ±0.5% typical
- Connection Style 200: Threaded 201: Threaded with flushing port
- Pressure Rating: 2,500 psi; 5,000 psi (OPT.)
